Indoor Model	Unit	AVA CI-36
Outdoor Model		AVA CI-36
Type (wall type or others)		Cassette type
Type (On-Off/Inverter)		Inverter
Type (Cooling only/Heating-Cooling)		Cooling only
Power Supply	V-Ph-Hz	220-240V, 1Ph, 50Hz
Gas Type		R32
Gas Amount(Kg)	Kg	1.6
Cooling	Capacity (Btu/H)	(Btu/H)	36000
Standard Current (A)	A	14.2
Standard Input (W)	W	3280
Rated Current (Max Current)	A	21
Rated Input (Max Input)	W	4840
EER	W/W	3.1
EER	(BTU/Hr)/W	10.98
SEER	W/W	N/A
Star Rating	Star	3
Heating	Capacity (Btu/H)	(Btu/H)	N/A
Standard Current (A)	A	N/A
Standard Input (W)	W	N/A
Rated Current (Max Current)	A	N/A
Rated Input (Max Input)	W	N/A
EER	W/W	N/A
EER	(BTU/Hr)/W	N/A
SEER	W/W	N/A
Star Rating	Star	N/A
Controller type		Remote/wire	Remote
Indoor Net Weight (KG)	Kg	24.5
Indoor Gross Weight (KG)	Kg	28.5
Indoor Body Size (mm)	mm	840×840×246
Indoor Packing Size (mm)	mm	910×910×310
Outdoor Net Weight (KG)	Kg	68.2
Outdoor Gross Weight (KG)	Kg	74
Outdoor Body Size (mm)	mm	980X410X1210
Outdoor Packing Size (mm)	mm	1032X470X1280
Compressor	Type		Rotary
Compressor	Brand		GMCC
Suction pressure (Mpa)	Mpa	1.5
Discharge Pressure (Mpa)	Mpa	4.4
Operation temperature	0C	16-32
Pipe Size (Liquie side, Gas side)		Inch	3/8, 5/8
Drain Pipe size		Inch (mm)	OD32
Indoor Air flow		m3/h	1800/1450/1250
IDU Noise level ,dB (Hi/Mi/Lo)	dB	53/51/47
ODU Noise level ,dB (Hi/Mi/Lo)	dB	59.5
Remarks: The above design and specifications are subject to change without prior notice for product improvement.

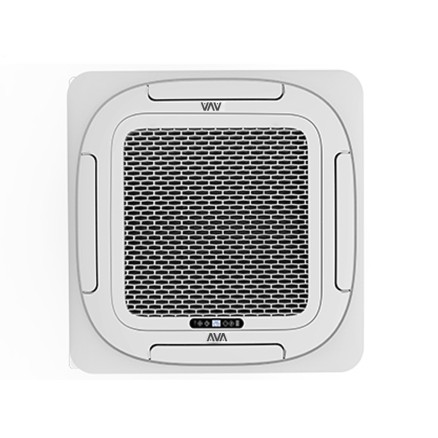

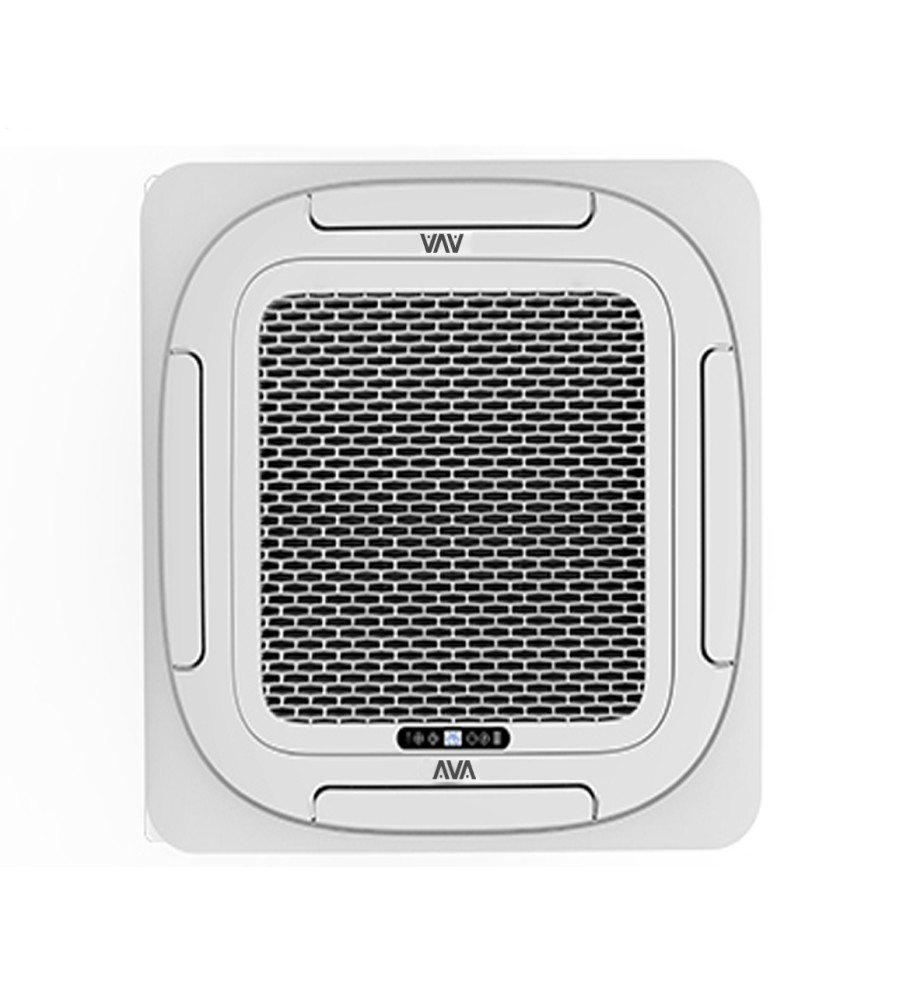

AVA 3.0 Ton Cassette Type Air Conditioner (Inverter)
